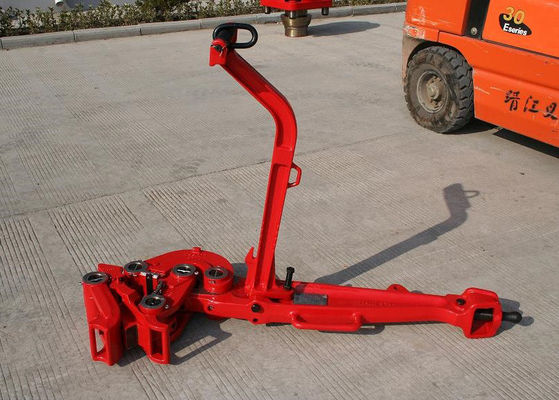

Wellhead Handling Tool Manual Tong Type DB, SB, Casing Tong, API 7K
Manual tongs are necessary tools applied to make up and break out pipes, coupling hoop of the drill pipe, joint, casings, casing hoops etc. When raise drill tool up and fall it down, changing lug jaws and handling shoulders or hole can adjust different handling sizes of the tongs. According to the requirements of the usage different torque’s tongs can be chosen. The manual tong is designed and manufactured according to API Spec 7K specification for drilling and well servicing equipment.
Tong body is connected with joint pin on the boom and hangs over the well rigs through the balance head and adjustable square head screw. The pipe threads could be tightened or removed as soon as the steel wire rope which is fastened on the tongs line pin has been pulled firmly after the latch and the lug jaw have been looped and the pipes have been held by the tongs head.
Available Type & Size Range:
Q 4~17-135 Type SDD Manual Tong
Q 2 3/8~7-22 Type LF Manual Tong
Q 2 3/8~10 3/4-48 Type C Manual Tong
Q 2 3/8~10 3/4-35 Workover Tong
Q 2 3/5~ 10 3/7-27 Type WWC Manual Tong
Q 2 3/8~ 10 3/4-48 Type WWB Manual Tong
Q 2 7/8~13 3/8-75 Type AAX Manual Tong
Q 13 3/8-8 Casing Tong
Q 13 3/8~25 1/2-35 Extended Casing Tong
Q25 1/2~36-55 Extended Casing Tong
| Tong Type & Size | No. of Latch Lug Jaw | Latch Step | Size Range | Rated Torque (kN·m) | ||
| in | mm | |||||
| Q 3 3/8~12 3/4-75 Type B Manual Tong | 5a | 1 | 3 3/8~4 1/8 | 85.7~104.8 | 55 | |
| 2 | 4 1/8~5 1/4 | 104.8~133.3 | 75 | |||
| 5b | 1 | 4 1/4~5 1/4 | 107.9~133.3 | |||
| 2 | 5~5 3/4 | 127~146 | ||||
| 3 | 6~6 3/4 | 152.4~171.4 | ||||
| 5b1 | 1 | 5 1/4~5 3/4 | 133.3~146 | |||
| 2 | 6~6 5/8 | 152.4~168.3 | ||||
| 3 | 6 3/4~8 | 171.4~203.2 | 55 | |||
| 5c | 1 | 6 5/8~7 3/8 | 168.3~187.3 | 75 | ||
| 2 | 7 3/8~8 | 187.3~203.2 | ||||
| 3 | 8 1/2~8 5/8 | 215.9~219 | 55 | |||
| 5d | 1 | 8 1/2~9 5/8 | 215.9~244.5 | |||
| 2 | 10 5/8~10 3/4 | 269.9~273 | ||||
| 5e | 1 | 11 3/4 | 298.5 | |||
| 2 | 12 3/4 | 323.8 | ||||
| 5e1 | 1 | 10 3/4 | 273 | |||
| 2 | 11 3/4 | 298.5 | ||||
| 5e3 | 1 | 13~13 3/8 | 330.2~339.7 | |||
| Q 3 1/2~13 3/8-75 Type SB Manual Tong | 1# | 1 | 3 1/2~4 1/8 | 88.9~104.78 | 75 | |
| 2 | 4 1/8~5 | 104.78~127 | ||||
| 2# | 1 | 4 1/4~5 1/4 | 107.95~133.35 | |||
| 2 | 5~5 3/4 | 127~146.05 | ||||
| 3 | 6~6 3/4 | 152.4~171.45 | ||||
| 3# | 1 | 6 5/8~7 1/4 | 168.28~184.15 | |||
| 2 | 7 3/8~8 | 187.33~203.2 | ||||
| 3 | 8 1/2~9 | 215.9~228.6 | 55 | |||
| 4# | 1 | 9~9 5/8 | 228.6~244.48 | |||
| 2 | 10 5/8~10 3/4 | 269.88~273.05 | ||||
| 5# | 1 | 11 3/4 | 298.45 | |||
| 6# | 1 | 12 3/4~13 | 323.85~330.2 | 40 | ||
| 7# | 1 | 13 3/8 | 339.73 | |||
Fore detailed specification, please check Tiptop Manual Tong Specification.pdf
Welcome to contact us to choose the correct manual tong model for you.
