Product Details:
Payment & Shipping Terms:
|
Product Name: | Perforating BOP | Certification: | API |
---|---|---|---|
Working Pressure: | 25Mpa; 35Mpa | Advantage: | Abrasion Resistance |
Colour: | Customized | Medium: | Crude Oil,gas |
High Light: | wellhead platform equipment,oil well christmas tree |

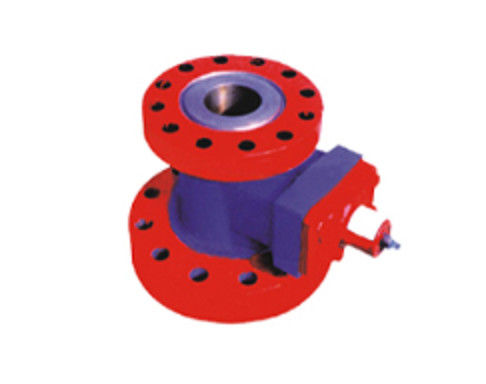

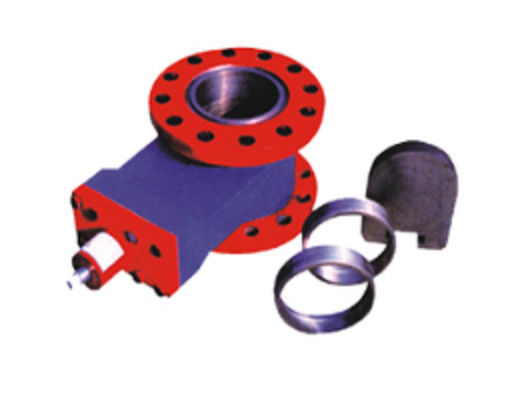

Oil Wellhead Equipment Perforating blowout preventer / Perforating BOP
Product feature:
The blowout preventer perforation in the structure of the whole wing with the side closure features interchangeable use of both positive and negative, the surface of the valve and valve seat hardfacing alloy, has good wear resistance and corrosion resistance.
Specification and main parameters:
Specification/Model | FZ12-35 | FZ18-25 |
Work pressure (Mpa) | 35 | 25 |
Diameter (mm) | Φ120 | Φ180 |
Switching path (mm) | 130 | 190 |
Boundary dimension (mm) | 690 x 480 x 370 | 690 x 380 x 370 |
Weight (kg) | 265 | 140 |
Working medium | Crude oil,Gas | |
Connection specification | Can be directly connected to the 250 wellhead or 350 wellhead |
