Standard: | API 16C | Working Pressure: | 2000~15000psi |
---|---|---|---|
Body Material: | AISI 4130/4140 | Material Class: | AA~EE |
Working Temperature: | -46°C~121°C | Structure: | Cheke Valve, Gate Valve, Pipeline Assembly |
High Light: | wellhead platform equipment,oil well christmas tree |

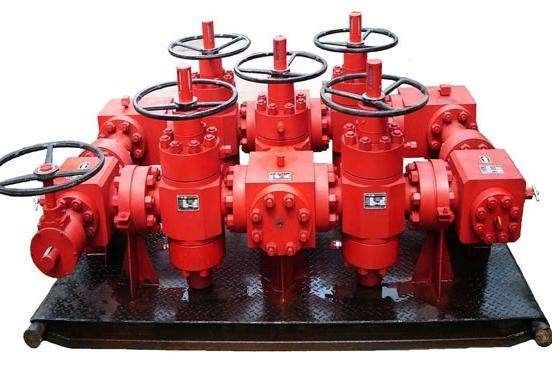

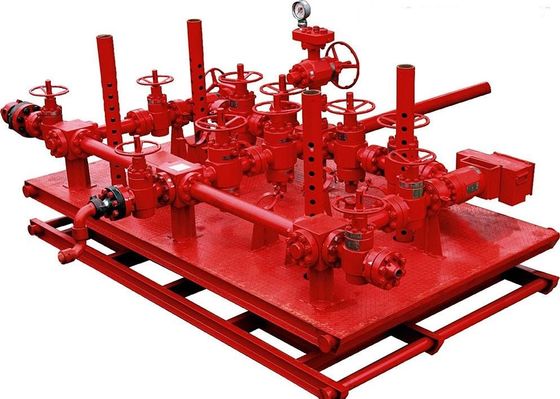

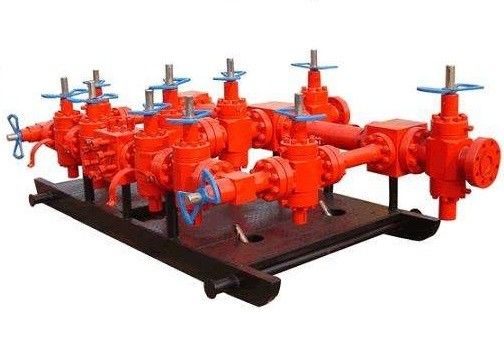

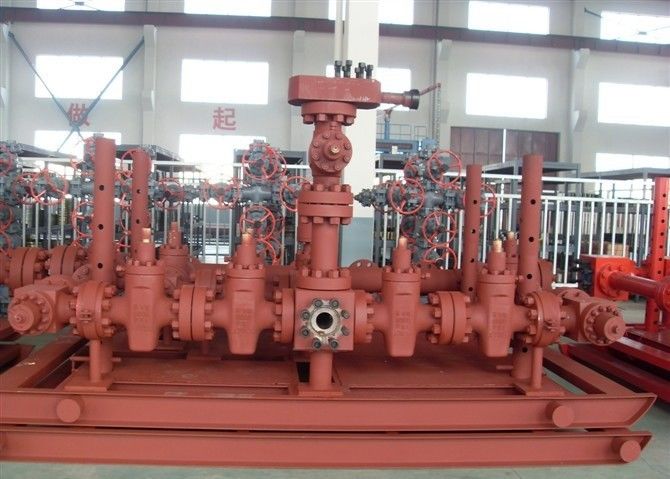

Wellhead Pressure Control Equipment API 16C Kill Manifold, Valve Assembly
Kill manifold is a key part in the control devices of oil/gas well, which has the function that, as the drilling string can not be used for normal operation, the kill manifold shall be used to pump drilling fluid into the well so as to control the downhole pressure.
In case of increase in wellhead pressure, the kill manifold can provide a means of pumping heavy drilling fluid into the well to balance bottom hole pressure so that well kick and blowout can be prevented. In this case, by using blow down lines connected to the kill manifold, the increasing well head pressure also can be released directly for bottom hole pressure release, or water and extinguishing agent can be injected into the well by means of the kill manifold. The check valves on the kill manifold only allow injection of kill fluid or other fluids into the well bore through themselves, but do not allow any backflow so as to perform the kill operation or other operations.
Structure
The kill manifold consists of check valves, gate valves, pressure gauges and pipelines. The one of the kill manifold is connected to the drilling spool and the other end is connected to the pump. The kill manifold and choke manifold are both designed to API 16C and can be used together. The kill manifold is available from 14MPa, 21MPa, 35MPa and 70MPa pressure ratings.
Operation Requirements
Working pressure of all pipelines, gate valves and check valves shall be compatible with that of the BOP stack used.
The kill manifold is not intended to be used as common lines for pouring drilling fluid.
Name | Kill manifold | |||
Type | JG/S2Y2-105 | YG-35 | YG-70 | YG-105 |
Main and side outlet bore in (mm) |
31/8×21/16(80×52) 41/16×29/16(103×65) 41/16×31/16(103×78) | |||
Nominal pressure psi (Mpa) |
3000(21), 10000(70) | 5000(35) | 10000(70) | 15000(105) |
Working temperature ℃(°F) |
LU -46℃ ~ +121℃ (-50°F ~ 250°F) | |||
Working medium | Drilling fluid, mud, oil(sour oil) | |||
Controlling form | Tetra-Wing fluid manual choke valve | Dual-Wing relief valve |
