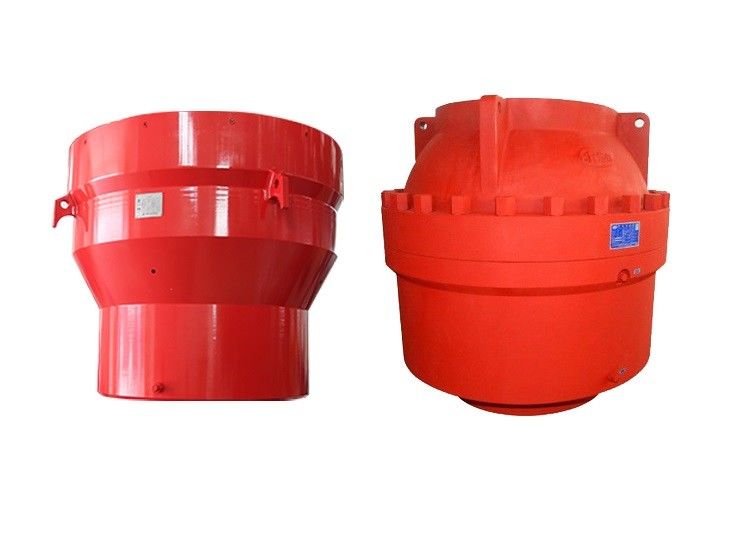

The diverter is used for controlling well pressure during oil and gas drilling. It is connected with hydraulic control system, spool, valve etc, to allow the controlled low pressure fluid to a safety palace in a specified way, meanwhile assuring the safety of the personnel and equipment. It can seal on varies of shapes and sizes of drill tools, such as Kelly, drill pipe, tool joint ,drill collar, casing etc ,meanwhile diverts the fluid from the well.

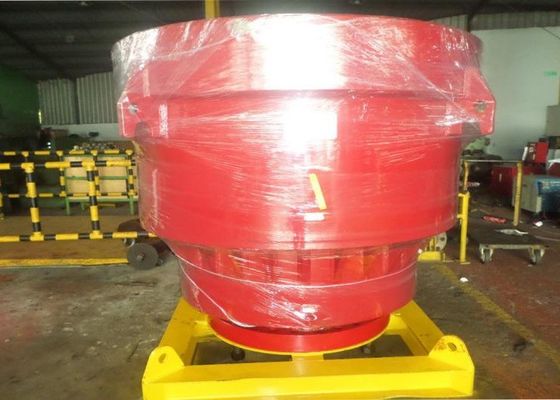

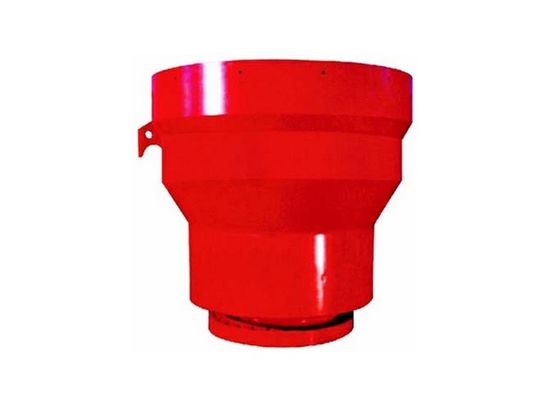

29 1/2''-500 psi Diverter

Structural Characters

* Diverter body is connected to head by jaws, which is easy to disassemble with impact structure and good bearing capacity.

* The cylinder is in a single acting type, and the closing action is realized by hydraulic forces while the opening action is realized by the deadweight of piston or by elasticity of the packing unit.

* All moving surfaces are processed by anti-corrosion measures in order to protect the parts from corrosion by drilling fluid and electrochemical corrosion to rubber parts.

* It improves the operational performance and extends the service life of products.

* A wear plate is installed on the head, to avoid abrasion to the bearing steel due to friction between the bearing steel of packing unit and the head.

* The body is integral.

Specification

Bore Size: 749.3mm (29 1/2’’)

Rated Working Pressure: 3.5MPa (500psi)

Operating Chamber Rated Working Pressure ≤12MPa (1700psi)

Recommended Operating Chamber Working Pressure ≤10.5MPa (1500psi)

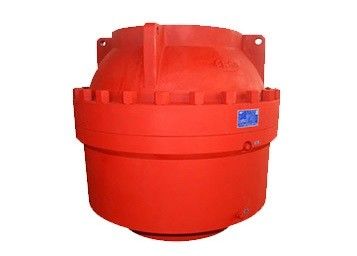

30''-1000 psi Diverter

Structural Characters

* It is composed of head, body, piston, spherical packing unit and opening chamber head with a compact structure.

* All moving surfaces are processed by anti-corrosion measures in order to protect the parts from corrosion by drilling fluid and electrochemical corrosion to rubber parts.

* it improves the operational performance and extends the service life of products.

Specification

Bore Size: 762mm (30’’)

Rated Working Pressure: 7MPa (1000psi)

Operating Chamber Rated Working Pressure ≤14MPa (2000psi)

Recommended Operating Chamber Working Pressure ≤10.5MPa (1500psi)
