Product Details:

Place of Origin: China
Brand Name: TIPTOP
Certification: Inspection Certificate
Model Number: Kelly Valve

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: seaworthy wooden box
Delivery Time: 10-30 days
Payment Terms: T/T, L/C, D/A, D/P
Supply Ability: 1000 pcs per month
Detailed Product Description
Type: Hand Control Valve Application: Prevent Blowout
Working Pressure: 35~105MPa Connection: API
Product Name: Kelly Cock Key Word: Drill Pipe Safety Valve
High Light:

blowout prevention equipment

,

blowout preventer valve

Upper and Lower Kelly Valve, Kelly Cock, Drill Pipe Safety Valve, 35-105MPa

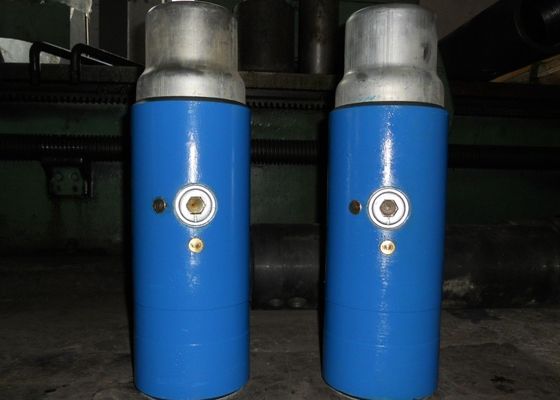

Kelly valve also named Kelly cock or drill pipe safety valve. It is a hand control valve in drill string circulating system and it is one of the effective tools to prevent blowout. Kelly valve is divided into Upper Kelly Valve and Lower Kelly Valve. Upper Kelly Valve is connected between swivel sub and Kelly. Lower Kelly valve is connected between lower end of Kelly and top of drill pipe or lower end of Kelly save sub. Rotating the wrench of full opening safety valve 90° to realize on and off. In the drilling operation, in order to avoid malignant accidents, Kelly valves should be connected to both end of Kelly to prevent loss of drilling fluid and blowout.



Our Kelly valves are supplied with end connections for pressure test verification. When connections are machined, the corresponding bevel diameters specified for the connection on the joining product shall be used.



Galling of rotary shouldered connections and sealing shoulders occurs frequently in field usage. Treating the shoulders and threads with a coating of zinc or manganese phosphate has proven to be beneficial in lessening this problem. Therefore a treatment of zinc or manganese phosphate shall be applied to the threads and the sealing shoulders of all end connections of Kelly valves and other drill stem safety valves manufactured from standard steels. Application of treatment shall be after completion of all gauging.



We also produce H2S resistance Kelly valves, which adopt high quality imported sulfur-resistance material.



Welcome to contact us for your kelly valve inquiries.



Specification

OD
mm (inch)
Connection
API
ID
mm (inch)
Working Pressure (Mpa)
86 (3 3/8) NC26 30 (1 3/16) 35, 70, 105
105 (4 1/8) NC31 40 (1 37/64) 35, 70, 105
111 (4 3/8) NC31 40 (1 37/64) 35, 70, 105
121 (4 3/4) NC38 44.5 (1 3/4) 35, 70, 105
127 (5) NC38 44.5 (1 3/4) 35, 70, 105
146 (5 3/4) 4 1/2 REG LH 44.5 (1 3/4) 35, 70, 105
159 (6 1/4) NC46 57.2 (2 1/4) 35, 70, 105
168 (6 5/8) NC50 71.4 (2 13/16) 35, 70, 105
178 (7) 5 1/2FH 71.4 (2 13/16) 35, 70, 105
197 (7 3/4) 6 5/8REG LH 76.2 (3) 35, 70, 105
203 (8) 6 5/8REG LH 76.2 (3) 35, 70, 105
