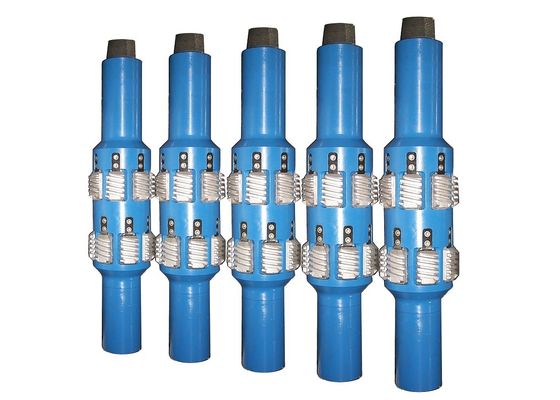

Large Image :  High Strength Rotating Casing Scraper Maintaining Clean Casing ID Corrosion Resistance

Product Details:

Place of Origin: China
Brand Name: TIPTOP
Certification: Inspection Certificate
Model Number: Casing Scraper

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: seaworthy wooden box
Delivery Time: 7-30 days
Payment Terms: T/T, L/C, D/A, D/P
Supply Ability: 1000 pcs per month
Detailed Product Description
Casing Size: 4 1/2''~10 3/8'' Connection: API
Application: Maintain Cleaning Casing ID Scraping Range: 92-330mm
Type: Oilfield Cementing Tool Material: High Quality Steel
High Light:

oilfield cementing equipment

,

casing swage tool

Oilfield Cementing Tool, High Quality Casing Scraper Maintaining Clean Casing ID

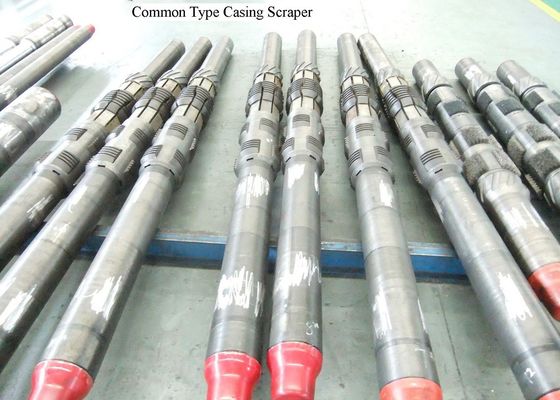

The Casing scraper is used to clean the cement, mud, embedded bullets, rust, mill scale, paraffin, perforation burrs and other substances from the inside walls of casing. Maintaining a clean casing ID is important to the operation of all tools used in drilling the well. Adhesive materials on casing walls will frequently cause these tools to become difficult to operation.



To scrape and clean the casing, simply pass the scraper through either with or without rotation. To check a perforated section for smoothness, run the scraper through the section without rotating. If the weight indicator does not show any irregularities the casing has been cleaned.



Every parts of the casing scraper are made of high quality steel, and fully heat treated. The scraper blades fit into machined recesses and are securely held by a dovetail keeper and spacer. The surface of casing scraper has the left hand helical grooves, and the edge is high hardness materials for maximum service. There are sufficient blades in the body to completely scrape the casing surface without rotating the tool.



The standard connection of the casing scraper is API REG box and pin. This allows the scraper to be installed in the drilling string between the bit and the bit sub. The bit works under the casing scraper, and has a function of guiding, and also prevents from jamming.



For any inquiries, please feel free to contact us.

Specification

Scraping Range (mm) Connection OAL (mm) ID (mm) Cutter Qty Casing Size (in)
92-112 2 3/8REG 895 25 2×3 4 1/2
95-118 NC26 895 25 2×3 5
110-133 2 7/8REG 1010 32 2×3 5 1/2
136-162 3 1/2REG 1010 32 2×3 6 5/8
142-168 3 1/2REG 1010 32 2×3 7
155-177 3 1/2REG (B×B) 1200 38.1 2×3 7 5/8
209-235 4 1/2REG 1212 57 2×5 9 5/8
260-240 6 5/8REG 1500 57 2×5 10 3/4
290-330 6 5/8REG 1372 71 2×7 10 3/8
