Product Details:

Place of Origin: China
Brand Name: TIPTOP
Certification: Inspection Certificate
Model Number: Shear Pump

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: wooden pallet
Delivery Time: 15~30 days
Payment Terms: T/T, L/C, D/A, D/P
Supply Ability: 500 sets per month
Detailed Product Description
Product: Drilling Fluid Shear Pump Apply For: Solid Control System
Lift: 35~45m Feature: High Shearing Efficiency
Flow: 440-528GPM Use: Separate Solid Particles
High Light:

oil well drilling equipment

,

oil drilling equipment

Oilfield Solid Control Equipment Drilling Mud Shear Pump for Shearing Drilling Mud

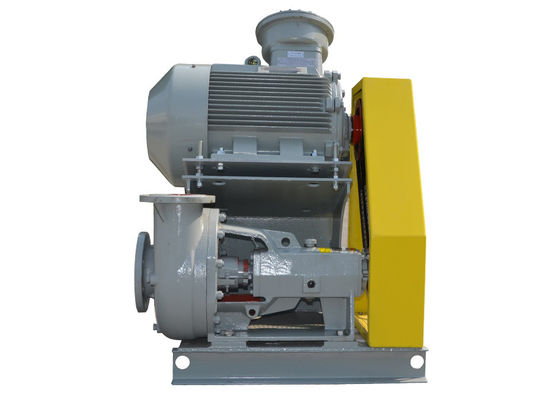

Shear pump adopts the axial suction, horizontal structure, composed of a motor, a pump seat, a pump shell, a worm gear, the shear wheel and a triangle belt transmission the power device, using a very reliable mechanical composite seal, to ensure no leakage. The internal of the pump is equipped with a stainless steel turbine (which has a main impeller, guide vane, nozzle, a collection chamber) and a shear plate.



If there is no sufficient shear, polymer during the first circulation may be jam shale shaker screen and will result in losing a lot of polymer, increase the cost of drilling, and also may make the drilling fluid in the large size of the particles harden and difficult to clear away. In the drilling fluid, due to no shear, the polymer will produce a lot of "fish eye", these "fish-eye" will damage the formation, the formation permeability decrease, reduce the production of oil and gas .Therefore for polymers need preliminary shearing, then into the drilling fluid system, improving the performance of drilling fluid and full play its role. Shear pump can provide very high shearing efficiency, accelerate polymer dilution, hydration process.



Shear pump adopts a set of mechanical seal for no leakage at stuffing box
1. Using the unique research and development of mechanical seal technology , novel and unique design at home and abroad , the seal performance is advanced , reliable operation and long service life .
2. Greatly improved bentonite particles hydration degree , reduces the bentonite clay need by 30%.
3. For polymer or clay rapidly hydration provide high shear force , solving polymer (or clay ) in the drilling fluid that hydration is bad and prominent problems .
4. It also reduce the mud cake and fluid loss, reduce drilling fluid shear rate, improve the gel strength , so as to achieve the advanced international level .



Shear Pump Parameters

Model JQB6545 JQB6535
Flow 120m3/h 100m3/h
528GPM 440GPM
Lift 45m 35m
Power 55kw 45kw
Electric Specs 380V/50HZ or 460V/60HZ or Customized
EX Standard Ex dⅡ BT4
Dimension 1050×1000×1280mm 1050×1000×1250mm
Weight 980kg 800kg
