Product Details:
Payment & Shipping Terms:
|
| Product: | Steel Wire Rope | Apply For: | Drilling Line |
|---|---|---|---|
| Structure: | Right Hand Ordinary Lay | Key Word: | Rotary Line |
| Material: | Stainless Steel | Type: | Galvanized And Ungalvanized |
| High Light: | oil drilling equipment,solids control equipment |
||

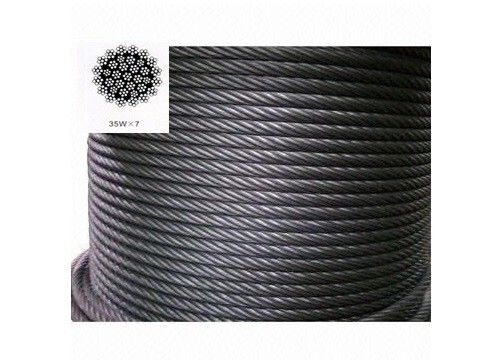

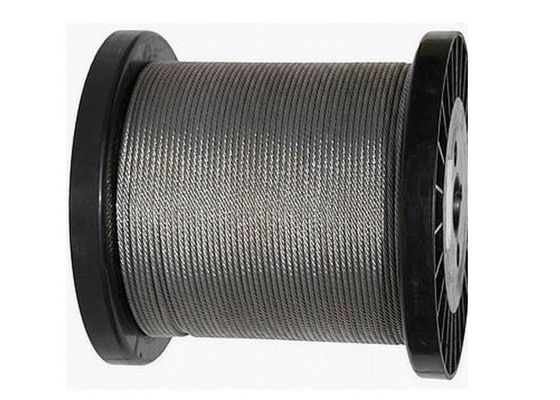

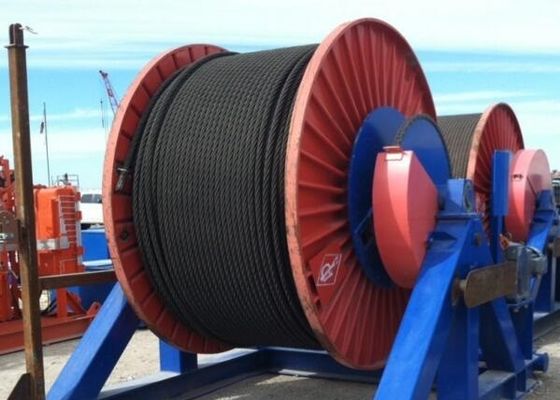

Oil & Gas Rotary Drilling Line, Drilling Wire Rope, Steel Wire Rope for Drilling Rig
wire ropes with higher breaking strength, excellent flexibility, better rotation resistance and extended lifespan are urgently needed with the development of gas and oil industry. These steel wire ropes are designed to increase the productivity on rigs and minimize downtime.
A wide range of gas & oilfield wire ropes can be supplied for different applications as shown below:

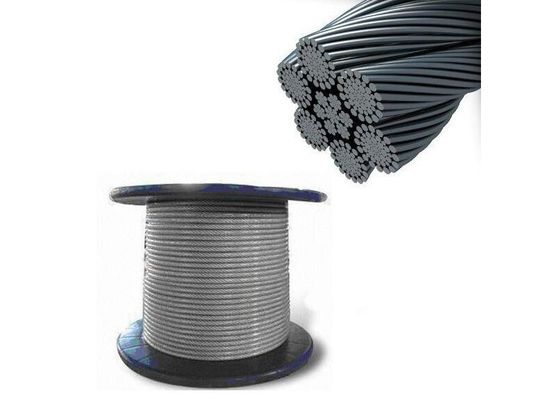

Wire rope consists of a group of strands laid helically around a core. In some cases, a single strand is a rope. The more strands a steel wire rope has, the more steel wires it owns in the same diameter. The price depends on the abrasive resistance and compliance and so on.
Type and direction of lay
Right hand ordinary lay
Left hand ordinary lay
Right hand lang’s lay
Left hand lang’s lay
We suggest choosing equal lay steel wire rope, compacted wire rope for general usage.
Recommendation
| Usage | Rope Type | Structure |
| Hoisting in vertical shafts | Triangular strand wire rope | 6Vx37S, 6Vx37, 6Vx34, 6Vx30, 6Vx21, 6Vx43 |
| Equal laid wire rope | 6x19S, 6x19W, 6x25Fi, 6x26WS, 6x29Fi, 6x31WS, 6x36WS, 6x41WS | |
| Multi-layer strand wire rope | 18x7, 17x7, 35Wx7, 24Wx7 6Qx19+6Vx21, 6Qx33+6Vx21 |
|
| Shaft excavation | Multi-layer strand wire rope un-shaped strand wire rope | 60x33+6Vx21, 17x7, 18x7, 34x7, 36x7, 60x19+6Vx21, 4Vx48S, 35Wx7, 24Wx7 |
| Balanced ropes for use in vertical shaft | Steel wire rope | 6x37S, 6x36WS, 4Vx39S, 4Vx48S |
| Multi-layer strand wire rope | 17x7, 18x7, 34x7, 36x7, 35Wx7, 24Wx7 | |
| Hoisting in inclined shafts (winch) | Multi-layer strand wire rope | 6Vx18, 6Vx19 |
| Steel wire rope | 6x7, 6x9W | |
| Vertical Shaft guide and ropeway | Triangular strand wire rope | 6Vx18, 6Vx19 |
| Multi-layer strand wire rope | 18x7, 17x7 | |
| Oil exploration | Equal laid wire rope | 6x19S, 6x19W, 6x25Fi, 6x26WS, 6x29Fi, 6x31WS, 6x36WS, 6x41WS |
| Conveyer belt, telpher, cable railway | Equal laid wire rope | 6x19S, 6x19W, 6x25Fi, 6x26WS, 6x29Fi, 6x31WS, 6x36WS |
