| Standard: | API 11B | Product Name: | Sucker Rod |
|---|---|---|---|
| Grade: | HY | Usage: | Oil Exploitation |
| Advantage: | High Intensity And Long Life | Color: | Black |
| High Light: | oil field pumping units,oilfield sucker rods |
||

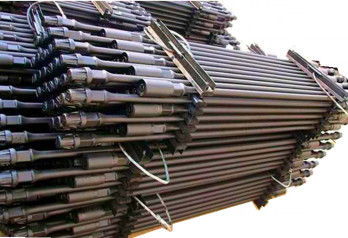

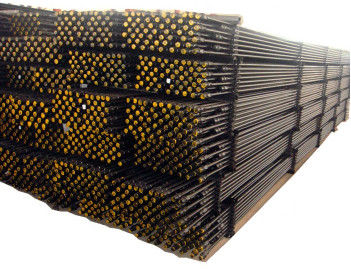

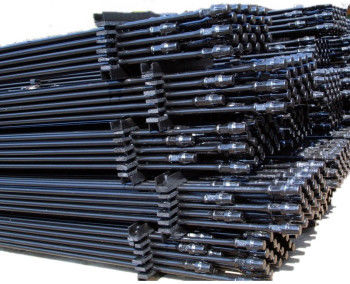

High Strength Oil Well Drilling Tools API 11B Grade HY Sucker Rod
Sucker rod description
Grade HY Sucker Rod is a high strength sucker rod, and is mainly used in deep well,the surface hardened layer has a stable martensite strip structure, high tensile strength,It has the characteristics of high tensile strength, good wear resistance, high torsion strength and long service life.
Grade HY Sucker Rod Specification
| Sucker Rod Nominal Value | Φ16(5/8") | Φ19(3/4") | Φ22(7/8") | Φ25(1") | Φ29(11/8") |
| Rod Body Diameter | 15.88+0.18-0.36 (0.625+0.007-0.014) |
19.05+0.20-0.41 (0.750+0.008-0.016) |
22.23+0.20-0.41 (0.875+0.008-0.016) |
25.40+0.23-0.46 (1.000+0.009-0.018) |
28.58+0.25-0.51 (1.125+0.010-0.020) |

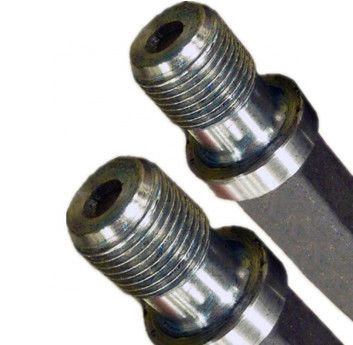

| Outer Diameter Of External Thread Shoulder | 31.8+0.13-0.25 (1.250+0.005-0.010) |
38.1+0.13-0.25 (1.500+0.005-0.010) |
41.3+0.13-0.25 (1.625+0.005-0.010) |
50.8+0.13-0.25 (2.000+0.005-0.010) |
57.2+0.13-0.25 (2.250+0.005-0.010) |
| Wrench Width ±0.8(±0.031) |
22.2(0.875) | 25.4(1.000) | 25.4(1.000) | 33.3(1.313) | 38.1(1.500) |
| Wrench Length | 31.8(1.250) | 31.8(1.250) | 31.8(1.250) | 38.1(1.500) | 41.3(1.625) |
| API Rod Length ±50(±2.0) |
508(20) 1118(44) 1727(68) 2337(92) 2946(116) 7518(296) 9042(356) |
508(20) 1118(44) 1727(68) 2337(92) 2946(116) 7518(296) 9042(356) |
508(20) 1118(44) 1727(68) 2337(92) 2946(116) 7518(296) 9042(356) |
508(20) 1118(44) 1727(68) 2337(92) 2946(116) 7518(296) 9042(356) |
508(20) 1118(44) 1727(68) 2337(92) 2946(116) 7518(296) 9042(356) |
| Domestic Rod Length±50 | 900,1400,1900, 2400,2900,3400, 7900,9900 |
900,1400,1900, 2400,2900,3400, 7900,9900 |
900,1400,1900, 2400,2900,3400, 7900,9900 |
900,1400,1900, 2400,2900,3400, 7900,9900 |
900,1400,1900, 2400,2900,3400, 7900,9900 |
| Upset Flange Diameter | 31.1+0.13-3.17 (1.219+0.005-0.125) |
35.7+0.13-3.17 (1.406+0.005-0.125) |
38.1+0.13-3.17 (1.500+0.005-0.125) |
48.4+0.13-3.17 (1.906+0.005-0.125) |
55.6+0.13-3.17 (2.188+0.005-0.125) |
| AR±3.2(±0.125) | 47.6(1.875) | 57.1(2.250) | 66.7(2.625) | 76.2(3.000) | 85.7(3.375) |
| CR+1.59-0.40 (+0.063-0.016) |
3.2(0.125) | 3.2(0.125) | 4.8(0.188) | 4.8(0.188) | 4.8(0.188) |
