Oilfield Oil Wellhead Equipment Tubing Head Spool / Tubing Hanger Long Service Life

I'm Online Chat Now

Oilfield Oil Wellhead Equipment Tubing Head Spool / Tubing Hanger Long Service Life

China Oilfield Oil Wellhead Equipment Tubing Head Spool / Tubing Hanger Long Service Life supplier
Oilfield Oil Wellhead Equipment Tubing Head Spool / Tubing Hanger Long Service Life supplier Oilfield Oil Wellhead Equipment Tubing Head Spool / Tubing Hanger Long Service Life supplier Oilfield Oil Wellhead Equipment Tubing Head Spool / Tubing Hanger Long Service Life supplier Oilfield Oil Wellhead Equipment Tubing Head Spool / Tubing Hanger Long Service Life supplier

Large Image :  Oilfield Oil Wellhead Equipment Tubing Head Spool / Tubing Hanger Long Service Life

Product Details:

Place of Origin: China
Brand Name: TIPTOP
Certification: Inspection Certificate
Model Number: Tubing Head

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Seaworthy Wooden Box
Delivery Time: 7-60 days
Payment Terms: T/T, L/C, D/A, D/P
Supply Ability: 500 sets per month
Detailed Product Description
Working Pressure: 2000~20000psi Body Material: AISI 4130/4140
Material Class: AA~EE Working Temperature: -46°C~121°C
Key Word: Tubing Head, Tubing Head Spool Product Name: Tubing Hanger
High Light:

wellhead platform equipment

,

oil well christmas tree

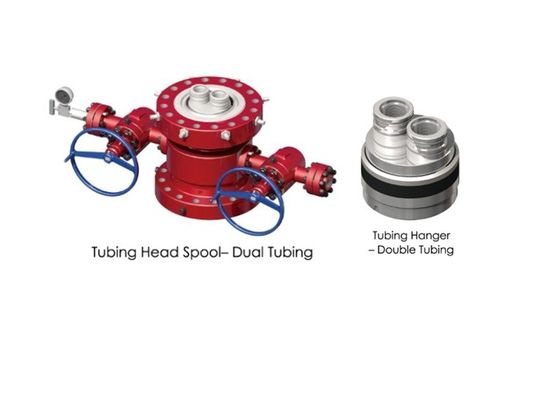

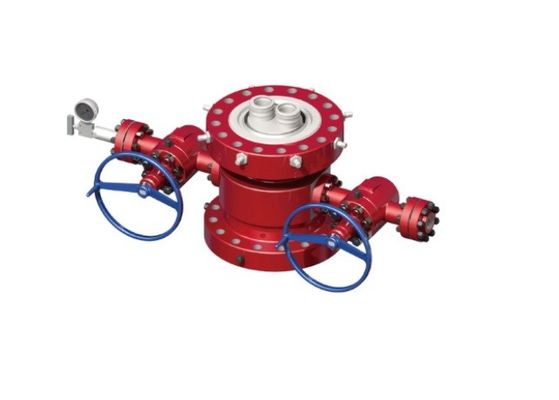

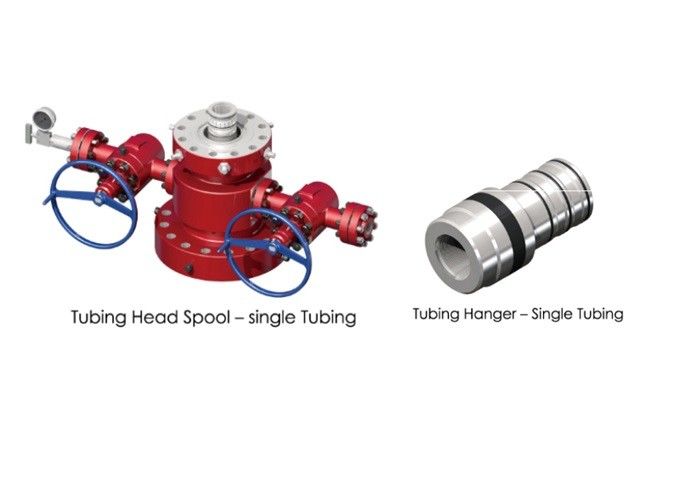

Wellhead Equipment Tubing Head, Tubing Head Spool, Tubing Hanger



Tubing head is usually a spool with both flanged ends, which is set on the top flange of casing head to hang tubing hanger and seal the annular space between the tubing string and oil-layer casing and which consist of tubing head spool and tubing hanger.



Functions:

Hang the tubing string inside well;

Seal the annular space between tubing and casing;

Give a crossover to connect casing head downwards and to connect Christmas tree upwards;

Provide both side outlets in tubing head spool body through which to execute injection and well wash operation.



Tubing hanger is an assembly to support tubing string and seal the annular space between tubing and casing, which is connected with tubing and seated into tubing hanger spool by tubing gravity. It is convenient to operate and replace wellhead so that it is widely used for intermediate depth well and common well.



Features

1. Secondary seal between tubing hanger and adapter hanger can be “O” ring, BT seal or metal-metal seal;

2. Metal-metal seals, special elastomer seals, or metal+special seals are set between tubing hanger and tubing head;

3. Tubing hanger for tubing head has straight type seat bore and 45°cone of hanging shoulder, wth strong loading ability;

4. Complete with lubricator and sealing test port;

5. Secondary seal mechanism is set at the bottom flange, which can be “O”seal,BT seal or metal seal;

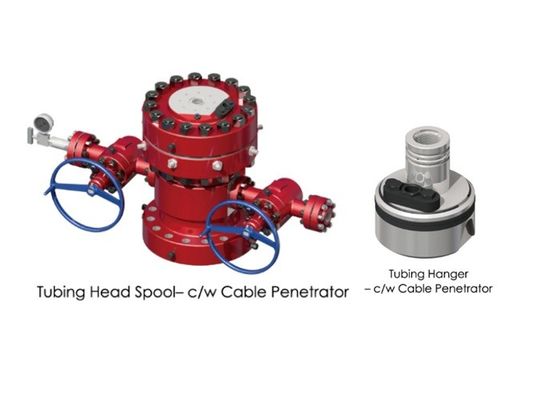

6. Tubing hanger and tubing head adapter flange can be penetrated through cable or cable penetrator and be provided with control pipeline interface;

7. Tubing hanger can be set with BPV thread as required;

8. The flanges are provided with locking screw;

9. The connection type of side outlet is bolted with VR thread for valve-replacement operation.



Tiptop manufactures tubing head spool in full accordance with API 6A. The body is made of forged or special smelt steel, providing high bearing strength, safety and reliability. Side outlets could be pipeline thread or studded, studded side outlet is machined with 1 1/2’’ female thread.



Specification

Working Pressure
psi (Mpa)
Nominal Bore
mm
Side Bore
mm
Tubing Hanger OD
mm
2000 (14) 46 46 52.4
3000 (21) 52.4 46, 52 60.3
5000 (35) 65.1 52, 65 73
10000 (70) 77.8 65, 78 88.9
15000 (105) 79.4 65, 80 88.9
20000 (140) 103.2 78, 103 114.3
