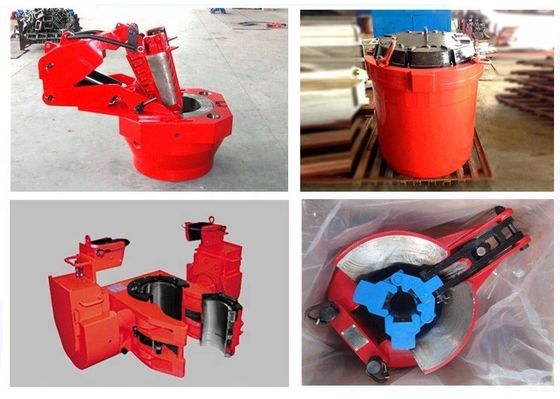

Large Image :  Petroleum Gas Drilling Rig Floor Handling Tools Hydraulic Center Latch Elevator, Side Door Elevator

Product Details:

Place of Origin: China
Brand Name: TIPTOP
Certification: Inspection Certificate
Model Number: Hydraulic Elevator

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: seaworthy wooden box
Delivery Time: 5~30 days
Payment Terms: T/T, L/C, D/A, D/P
Supply Ability: 500 pc per month
Detailed Product Description
Product Name: Hydraulic Center Latch Elevator Capacity: 250-500 Tons
Standard: API 8A/8C Key Word: Hydraulic Side Door Elevator
Type: DDZH, CDZH Apply For: Handling Drill Pipe, Drill Collar, Casing, Tubing
High Light:

tubular handling equipment

,

drilling rig components

Rig Floor Handling Tool Hydraulic Center Latch Elevator, Side Door Elevator



Hydraulic elevators are the rig tool used in petroleum and gas drilling. During making a trip, hydraulic elevators can hang the tapered Drill pipe, drill collar, casing and tubing through exchanging the bushings conveniently, safely and reliably and favors extending the service life of main body of elevators. The products shall be designed and manufactured according to the requirements in API Spec 8C Specification for Drilling and Production Hoisting Equipment and uses the hydraulic control system, which makes the operation more convenient, effectively reduces the workers’ labor intensity and improves the work efficiency; it can also realize remote control and make the use safer and more reliable.

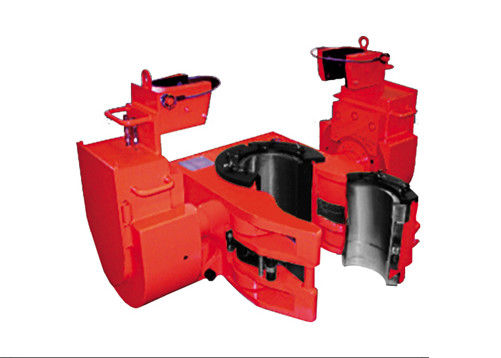

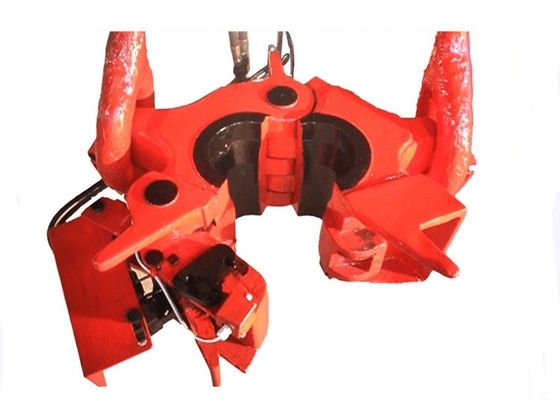

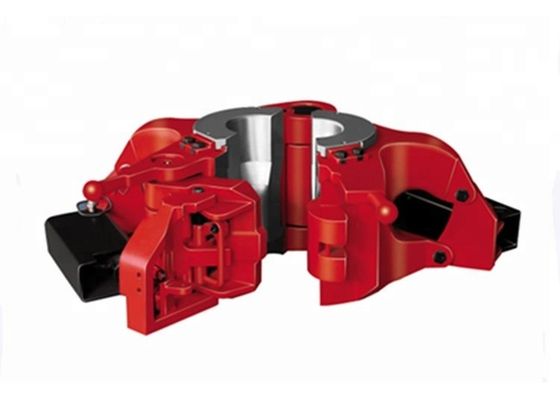

Hydraulic elevator DDZH is a center latch elevator. Hydraulic elevator CDZH is a side door elevator with double-vale structure.



The hydraulic elevators are mainly made up of main body verso, main recto, bushing (Drill pipe bushing, drill collar bushing, casing bushing, tubing bushing), latch, latch, safety handle, hinge pin, spring, hydraulic system.



All the key components of hydraulic elevators are made of the high-strength alloy steel, ensuring the safety and reliability of elevators.



Model Tubular & Size (in) Rated Capacity
(Short Tons)
Drill Pipe with 18° Taper Casing Drill Collar Tubing
DDZH-250 2 3/8''~5'' 4 1/2''~5'' 3 1/8''~5 1/4'' 2 3/8''~4 1/2'' 250
DDZH-350 2 3/8''~6 5/8'' 4 1/2''~7'' 3 1/8''~6 3/4'' 2 3/8''~5 1/2'' 350
DDZH-500 2 3/8''~6 5/8'' 4 1/2''~7'' 3 1/2''~6 3/4'' / 500
CDZH-500 3 1/2''~6 5/8'' 4 1/2''~9 5/8'' 4 3/4''~9 3/4'' 2 3/8''~4 1/2'' 500



Specification of Bushing:

Mark of bushings Casing specification Pore diameter of bushings d (mm)
in mm
41/2Cp 4 1/2 114.3 116.69
43/4Cp 4 3/4 120.65 123.04
5Cp 5 127 130.18
51/2Cp 5 1/2 139.7 142.88
53/4Cp 5 3/4 146.05 149.23
6Cp 6 152.4 155.58
65/8Cp 6 5/8 168.28 171.45
7Cp 7 177.8 180.98



Mark of bushings Specification of drill collar (in) Upper pore diameter of bushing d Lower pore diameter of bushing d1
in mm in mm
31/8Zip 3 1/8 2 13/16 71.5 3 1/4 82.55
31/2Zip 3 1/2 3 3/16 81 3 5/8 92.08
41/8Zip 4 1/8 3 13/16 96.84 4 1/4 107.95
43/4Zip 4 3/4 4 3/8 111.13 4 7/8 123.83
5Zip 5 4 5/8 117.48 5 1/8 130.18
51/4Zip 5 1/4 4 7/8 123.83 5 3/8 136.53
51/2Zip 5 1/2 5 1/8 130.18 5 5/8 142.88
53/4Zip 5 3/4 5 1/4 133.35 5 7/8 149.23
6Zip 6 5 1/2 139.7 6 1/8 155.58
61/4Zip 6 1/4 5 3/4 146.05 6 3/8 161.93
61/2Zip 6 1/2 6 152.4 6 5/8 168.28
63/4Zip 6 3/4 6 3/16 157.16 6 7/8 174.63



Mark of bushings Specification of tubing (in) Pore diameter of bushing d(mm)
2 3/8 2 3/8 62.31
2 3/8EU 2 3/8EU 68.66
2 7/8 2 7/8 75.01
2 7/8EU 2 7/8EU 81.36
3 1/2 3 1/2 90.88
3 1/2EU 3 1/2EU 98.02
4 4 103.58
4EU 4EU 110.72
4 1/2 4 1/2 116.69
4 1/2EU 4 1/2EU 123.42
5 5 130.18
5 1/2 5 1/2 142.88



Mark of bushings Applicable specification of joint and Drill pipe Upper and lower pore diameter of bushings
joint code name Specification and type of Drill pipe Upper pore diameter d Lower pore diameter d1
mm mm
2 3/8EU NC26(23/8IF) 2 3/8EU 69 63
2 7/8EU NC31(27/8IF) 2 7/8EU 85.73 85.73
3 1/2 EU NC38(31/2IF) 3 1/2 EU 103.19 103.19
NC40(4IF)
4IU NC40(4FH) 4IU 109.54 109.54
4EU
4 1/2IU
4 1/2IEU
NC46(4IF) 4EU 122.24 122.24
4 1/2IU
4 1/2IEU
41/2FH 4 1/2IU
4 1/2IEU
4 1/2EU NC50(41/2IF) 4 1/2EU 134.94 134.94
5IEU
5IEU 51/2FH 5IEU
