Solid Control Degasser , Mud Gas Separator Drilling Fluid Degassing Equipment

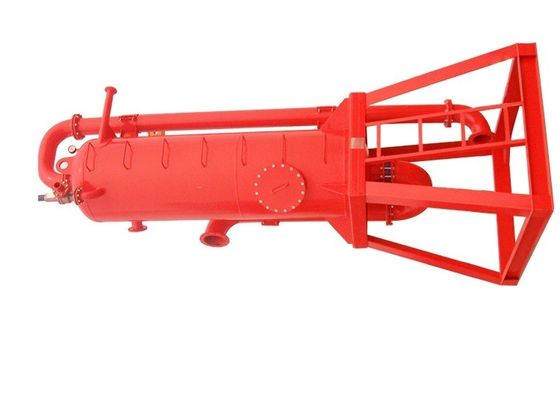

Oilfield Solid Control Drilling Fluid Degassing Equipment Mud Gas Separator

Mud Gas Separator (Poor Boy Degasser) is a specific degassing equipment of drilling fluid with gas. It is mainly used to remove big bubbles in diameter no less than φ3mm in gas drilling fluid. Our Mud Gas Separator has a lot of advantages including reliable safety, better treatment effect, long service life, etc.

If the big bubble's diameter is greater than φ3~φ25mm, which will make the drilling fluid's gravity and viscosity ratios deviated greatly, the mud will not meet the demand of drilling, even further more, a worse situation of gas in drilling fluid will cause well kick or blowout.

Gas invaded drilling fluid enters the separator from the liquid inlet tangential. Along the wall fell in a specially designed a series of inside baffle, collision, increase the exposure surface area, flows down words, cause turbulent flow, separate the drilling fluid. Free gas was discharged through the separator top of the gas exhaust pipe, (pipe length shall not be less than 50 meters) and led to the safe area using Flare Ignition Device can ignite gas. The degassing of drilling fluid was sent into shale shaker inlet or shale shaker distributer.

We use high quality steel materials manufacturing normal pressure prevent H2S Mud Gas Separator, which can effectively prevent the harmful gas erosion, ensure the man- machine safety production.

Mud Gas Separator Parameters
