ZTQ203 Rig Floor Handling Tools API 7K Drill Pipe Dual Purpose Casing Power Tong

I'm Online Chat Now

ZTQ203 Rig Floor Handling Tools API 7K Drill Pipe Dual Purpose Casing Power Tong

China ZTQ203 Rig Floor Handling Tools API 7K Drill Pipe Dual Purpose Casing Power Tong supplier
ZTQ203 Rig Floor Handling Tools API 7K Drill Pipe Dual Purpose Casing Power Tong supplier ZTQ203 Rig Floor Handling Tools API 7K Drill Pipe Dual Purpose Casing Power Tong supplier ZTQ203 Rig Floor Handling Tools API 7K Drill Pipe Dual Purpose Casing Power Tong supplier

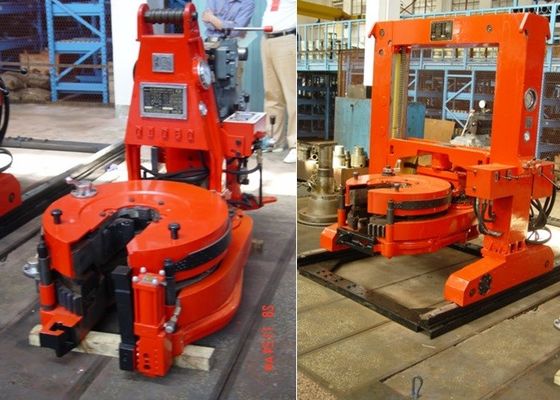

Large Image :  ZTQ203 Rig Floor Handling Tools API 7K Drill Pipe Dual Purpose Casing Power Tong

Product Details:

Place of Origin: China
Brand Name: TIPTOP
Certification: Inspection Certificate
Model Number: Dual Purpose Power Tong

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: seaworthy wooden box
Delivery Time: 5~30 days
Payment Terms: T/T, L/C, D/A, D/P
Supply Ability: 500 pc per month
Detailed Product Description
Product Name: Drill Pipe And Casing Power Tong Tubular Size: 3 1/2''~5'', 8''
Standard: API 7K Key Word: Handling Drill Pipe And Casing
Model: ZTQ203 Material: Alloy Steel
High Light:

tubular handling equipment

,

drilling rig components

Rig Floor Handling Tool API 7K Drill Pipe and Casing Dual Purpose Power Tong



Dual-purpose power tongs is applicable to tripping operation and running-in casing operation in the drilling activities in petroleum and mining. It is a new power tongs dependently developed according to the requirements from oilfield customers. The power tong integrates the function of drill pipe power tong and casing power tong. It can meet the requirements under the operation of frequent tripping or connecting single pipe. In addition, it can be used to run in the casing with small diameter. During the conversion between the two operations, it is not necessary to replace the equipment. It can increase the wellhead operation efficiency and reduce the labor intensity. The tongs are designed and manufactured according to API 7K.



Model ZTQ203-100/35 ZTQ203-100/35Ⅲ ZTQ203-125/35 ZTQ203-125/35Ⅲ
Size range Drill pipe mm 127-203 127-203 127-203 127-203
in 3 1/2''~5'', 8'' 3 1/2''~5'', 8'' 3 1/2''~5'', 8'' 3 1/2''~5'', 8''
Casing mm 127-196 127-196 127-196 127-196
in 5''~7'' 5''~7'' 5''~7'' 5''~7''
Max. torque Drill pipe kN.m 100 100 125 125
ft.lbf 73760 73760 92200 92200
Casing kN.m 35 35 35 35
ft.lbf 25816 25816 25816 25816
Speed(High gear) rpm 40 40 40 40
Speed(Low gear) rpm 2.7 2.7 2.7 2.7
Air pressure MPa 0.5—0.9
psi 72—130
Pressure rating MPa 16.6 16.6   20.7
psi 2400 2400   3000
Flow rating L/min 114 114   114
gpm 30 30   30
Shifting distance mm 0—1500 0—1500
in 0—59 0—59
Travel distance mm 0—3000 0—3000
in 0—118 0—118
Lifting distance mm 0—800 0—800
in 0—31.5 0—31.5
Weight kg 2450 3600 2700 3800



ZTQ203 Rig Floor Handling Tools API 7K Drill Pipe Dual Purpose Casing Power Tong
