|Standard:||API 6A||Working Pressure:||2000~20000psi|
|Material Class:||AA To FF||Product Specification Level:||PSL 1 ~ PSL 4|
|Performance Requirement:||PR1~PR2||Body Material:||AISI 4130/4140|
wellhead platform equipment,
oil well christmas tree

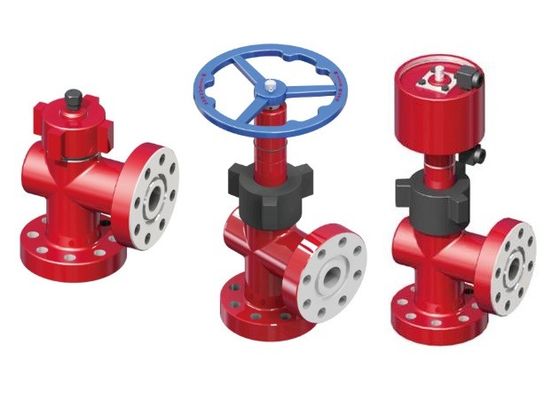

Oil Wellhead Equipment Component, API 6A Adjustable Choke Valve, Positive Choke Valve
Choke valve, a main component of Christmas Tree, is designed to control production rate of oil well, with working pressure up to 20000psi. Choke valves can be classified as follows: adjustable choke valves and positive choke valves. By rotating hand wheel to move the stem, the adjustable choke valve is designed to adjust the effective area available for the flow to accomplish control of production rate. The positive choke valve is designed to accomplish control of production rate by changing flow beans.
* The coupling nut used for connecting the bonnet and body allows fast make-up and break-out.
* Stem tip and bean adaptor are fabricated from special carbide alloys for corrosion and abrasion resistance.
* Indicator lens with scale marks allows the operator to know stem’s position and actual orifice area.
* Turn hand wheel counter-clockwise and the valve will open; turn hand wheel clockwise and valve will close.
Main Technical data:
Working pressure: 2000~20000psi
Nominal Bore: 2 1/16’’~7 1/16’’
Working Temperature: P U
Product Specification Levels: PSL 1~4
Performance Requirement: PR 1 ~2
Material Class: AA~FF
Working Medium: crude oil, natural gas, drilling fluid

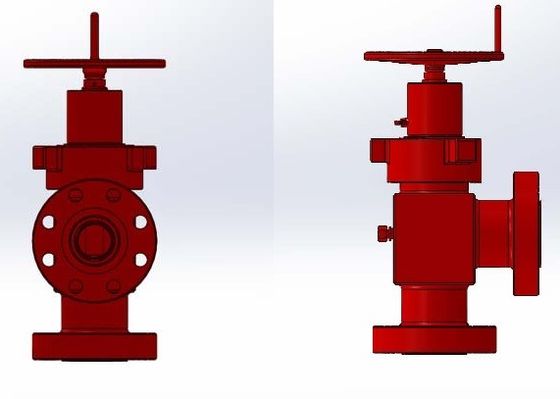

Adjustable choke valve
* Valve needle and spool are made of tungsten carbide, with sufficient corrosion resistant, antieroding and wearable capacity.
* The two kinds of adjustable choke, needle type and external sleeve type could apply to wellheads & X-mas tree and choke manifold.

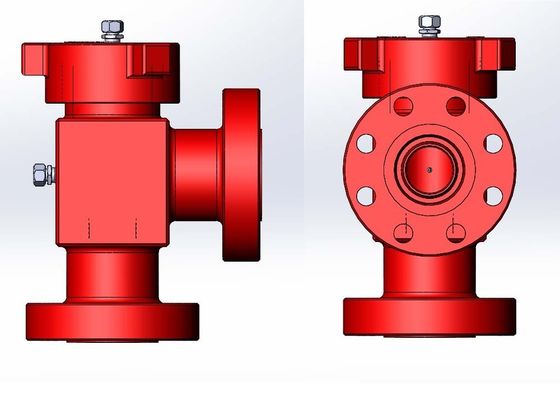

Positive choke valve
* Material of choke bean is fabricated from ceramic and tungsten carbide, with sufficient corrosion resistant, anti-eroding and wearable capability.
* It adopts union bonnet so as to change choke quickly.
* It has application in wellhead & X-mas tree and choke line.
Specification for Adjustable Choke Valve
|Nominal pressure||2000~20000PSI||Nominal bore||21/16’’~ 41/16’’|
|Driving mode||Manual and hydraulic||Connection form||Flange and threaded|
|Specification level||PSL1~4||Performance level||PR1~PR2|
|Material class||AA~ FF||temperature level||LU (-46°C~121°C)|
