China Shaped Charge for Oil & Gas Well Perforating, Steel Case for Shaped Charge
Tiptop Perforating is a professional provider of downhole perforating systems in China. We focus on providing customized service for design & manufacture of perforating equipment, including perforating charge, perforating gun, perforator, perforating tools & accessories for oil & gas exploration.

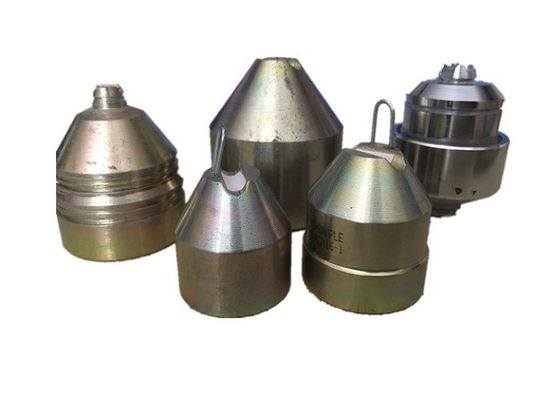

Tiptop perforating charge center utilizes computerized hydraulic pressing systems to ensure consistent and stable manufacturing of a wide range of shaped charges for oil & gas well perforating. Our shaped charge products include:

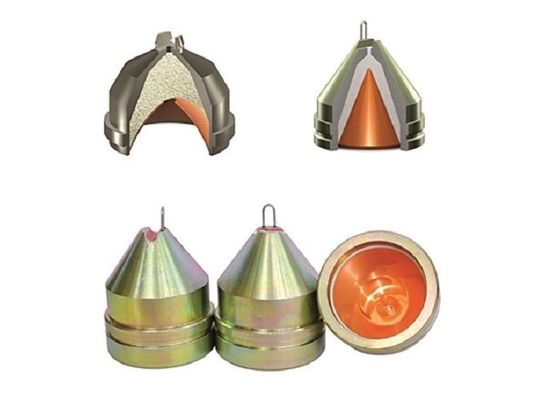

“Pioneer” Ultra-Deep Penetrating Shaped Charge
High Quality Pioneer Ultra-Deep Penetrating Shaped Charge can satisfy the heavy oil, low permeability and high fracture pressure of formation of oil and gas exploration, effectively improve the construction effect, can significantly improve the single well production and recovery factor of oil and gas.

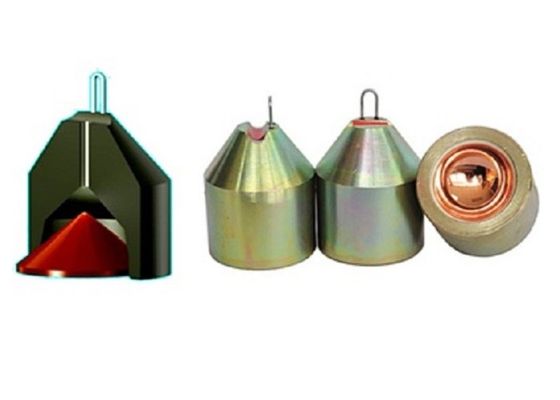

Deep Penetration Shaped Charge
With the features of deep perforation, regulate channels, low harm, no pestle blocking, no damage to casing, this series of products can be used for normal temperature, high temperature and super-high temperature.
Deep Penetration shaped charges are used for kinds of guns, such as 51mm, 73mm, 83mm, 86mm

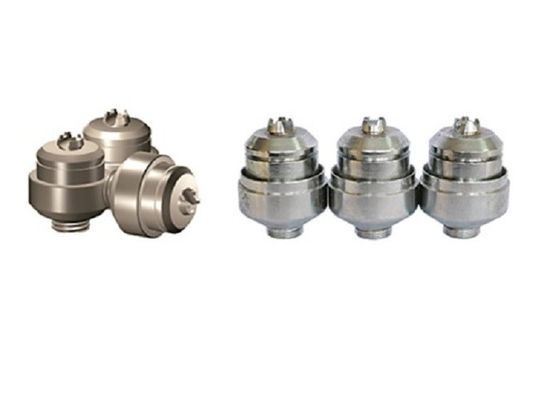

TTG Capsule Shaped Charge
This series of products are of small size, light weight, easy to operate, etc, which could be conveyed through tubing by wire, and perforation in tubing or casing. The products are suitable for small hole well perforation, potential tapping of old wells or engineering incident handling.
1. Perforator containing size: ¢43, ¢51, ¢54, ¢63mm;
2. Pressure Rating: 105Mpa; Low clastic material shell is 70Mpa.
Big Hole Shaped Charge
The product has the characteristics of stable penetration, big hole, slug free, no damage to the casing, less pollution etc. For low permeability, heavy oil, sand and other strata, the product could reduce the resistance of oil and gas flowing into wellbore, which could improve flow and reduce the pressure loss, thus greatly increase the productivity.
The product can adjust the type of explosives to meet the temperature requirements according to the specific conditions of oil and gas wells.
Synergy Shaped Charge
The product is a new type of shaped charge which combines the operation of perforation and high energy gas fracturing. The shpaed charge and the fracturing explosive are installed together coaxially, the fracturing explosive will be sent to perforating hole by jet after the explosion of shaped charge, and direct fracture the stratum and rock, extension the fracture, which could meet the purpose of production increasing and efficiency increasing. The product of this type could reduce the damage of high-energy gas to gun and casing. Synergy shaped charge is of simple shape and easy to load in gun. After perforation test, the hole of perforating gun is regular, small damage to the gun, the perforation hole is clear.
Tubing, Casing and Drill Pipe Puncher
The product, with a large entrance hole, can penetrate the inner tubing, casing or drill pipe according to the engineering needs. The damage to outer layer tubing is minimal when perforating tubing.
The product can be conveyed to oil and gas well by wire or tubing, then punch the tubing and casing, ad the circulation tunnel is established. It provides a more effective engineering solution for oilfield users, which can greatly save the cost and shorten the processing cycle.
Applicable Temperature: 130°C/24h 122°C/48h(Normal temperature)
|No||Type of Perforator||Type of Shaped Charge||Explosive Qty (g)||Explosive Type||Piercing Performance of concrete target||OD of||OD of Casing (mm)|
|Depth (mm)||Hole size (mm)||Perforating gun (mm)|
For detailed specification, please check Tiptop Perforating--Shaped Charge.pdf.
We also provide steel cases for the shaped charges.
